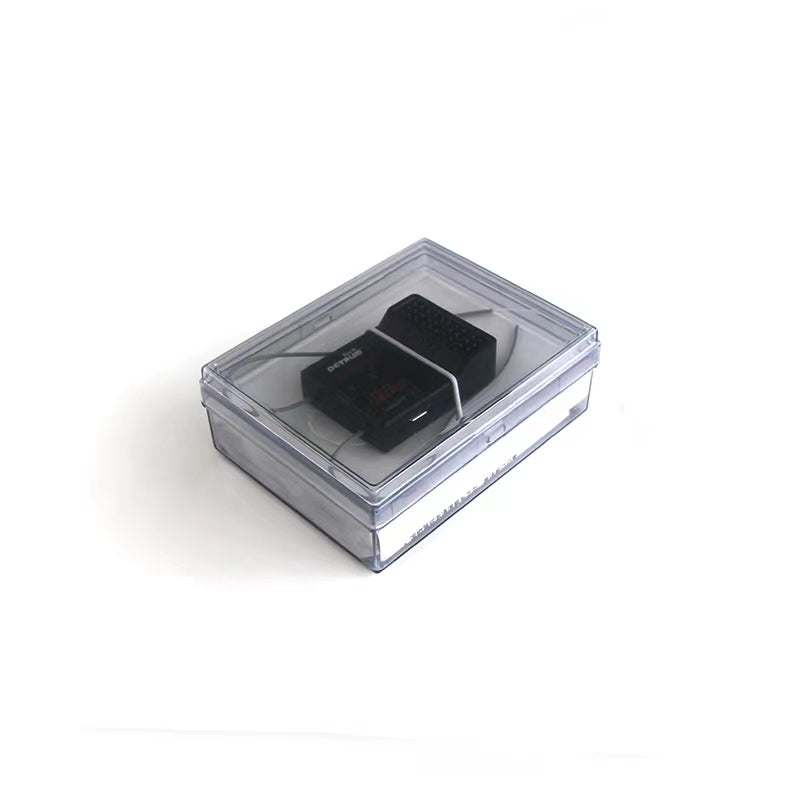

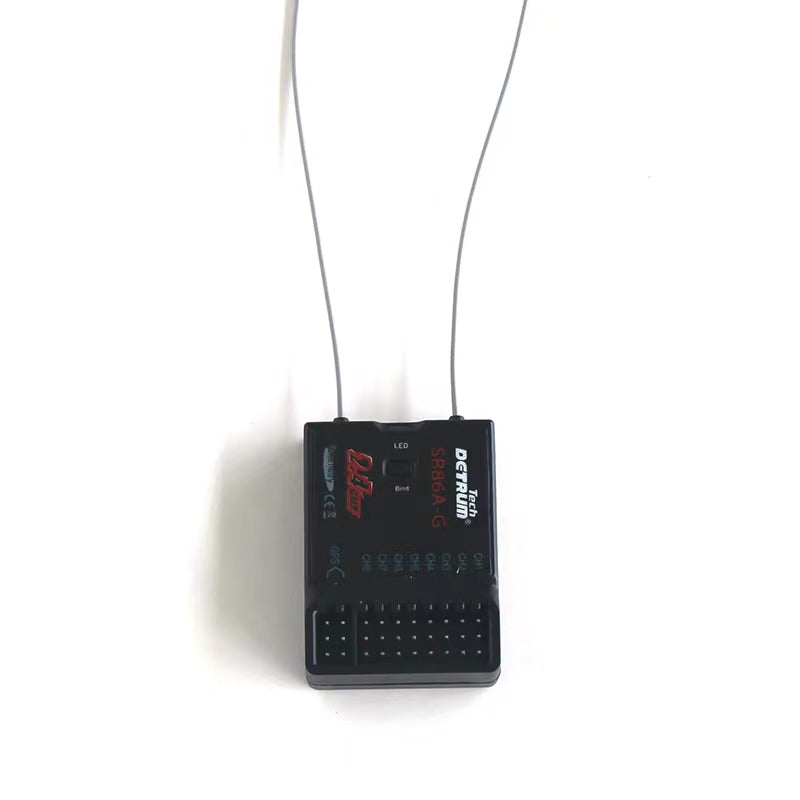

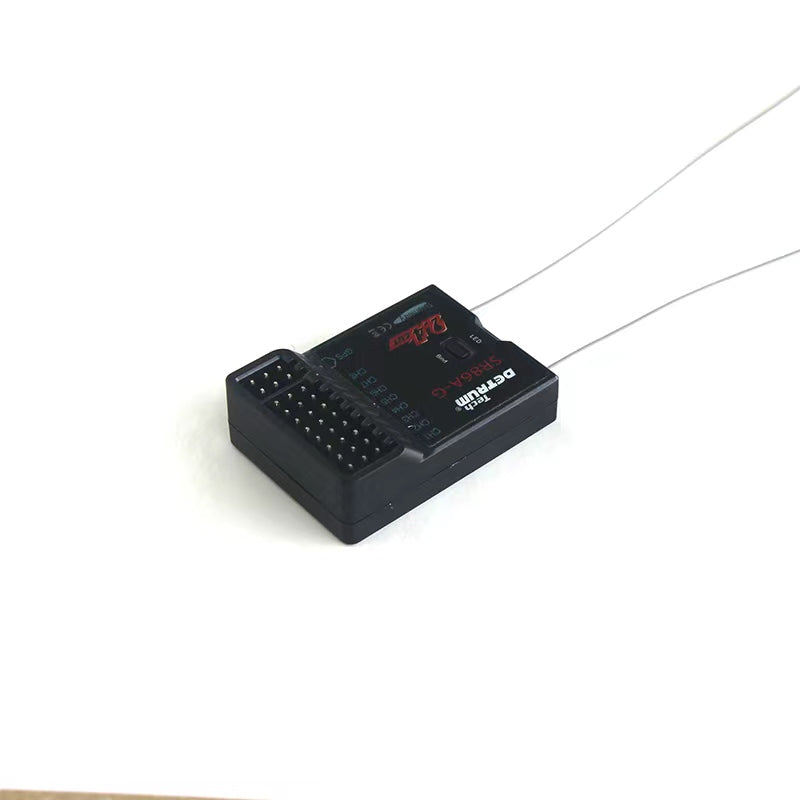

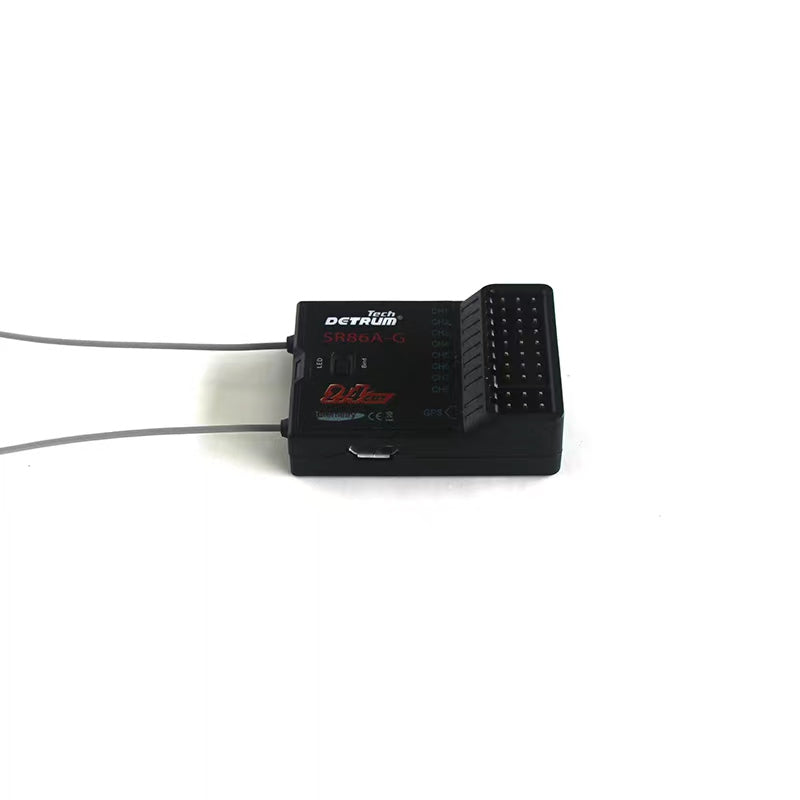

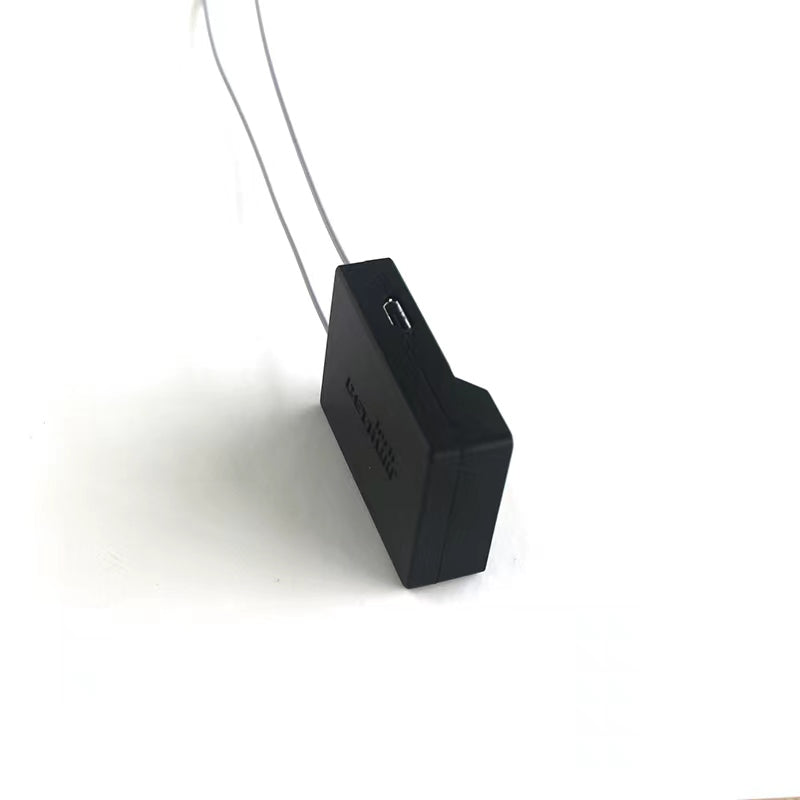

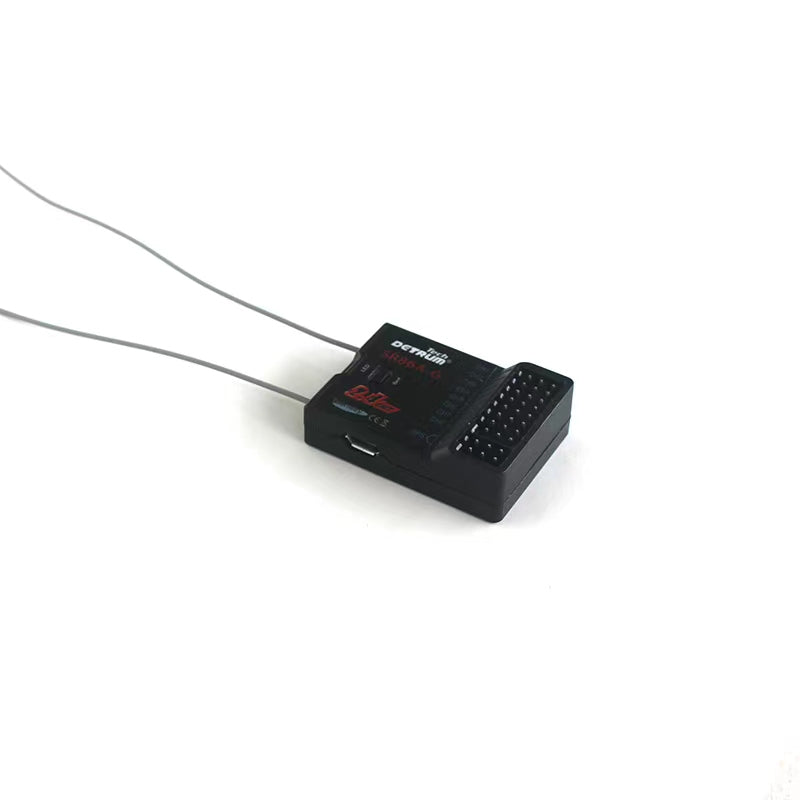

Detrum SR86A-G 8-Channel Autopilot Telemetry Receiver

Return Home - Adding path control based on the auto-recovery mode allows the airplane to automatically plan the path and leads the airplane back to the starting point. Height is controllable during the return flight. You can exit the return mode at any time by waving the return switch, supporting the one-button and signal loss returns.

Main Control IC - 32-bit high-performance ARM core processor, 6-axis MEMS gyro chipset.

Control Algorithm - Original airplane attitude stabilization algorithm and control algorithm. Support normal wing, delta wing, V-tail airplanes, and 3D planes.

Flight Mode - Four modes: Gyro off, Normal, Aerobatic, and Auto-Recovery (Auto Balance). You can switch between different modes with the toggle switch.

Adjusting the Gain - Set the gain and other programmable items with matched transmitter.

High Sensitivity - SR86A adopts 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping (FHSS) technologies, having high receiving sensitivity and strong anti-interference capability.

Diversity Antenna - Using a diversity antenna, combined with the signal detection and switching algorithm, makes the receiving signal stable and reliable.

Unique ID Code - Once the binding is made, the ID code is stored in the receiver, and no further binding is necessary after restarting the receiver.

Output Signals - 8-channel PWM.

Channels: 8-channel
Sensor: 6-axis gyro, Barometric Pressure, GPS
Sensitivity: -97dBm
Output: PWM (71Hz)
Transmission Range: More than 1,000 meters on the ground, more than 1,600 meters in the air
Input Voltage: 3.6V ~ 16V
Dimensions (L x W x H): 42.3 x 31 x 13.1mm
Weight: 14g
